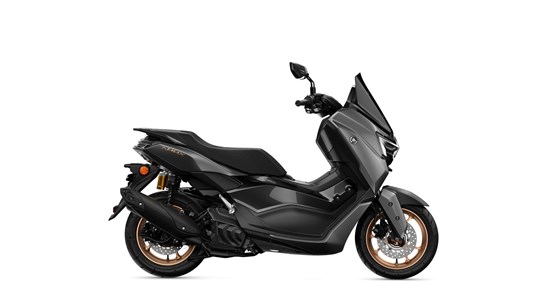

Yamaha NMAX 155 Tech MAX (2026)
- Engine and Drive Train
- Cylinders
1
- Strokes
4-Stroke
- Valves per cylinder
4
- Valves
OHC
- Cooling
liquid
- Displacement
155 ccm
- Bore
58 mm
- Stroke
58.7 mm
- Engine power
15.1 HP
- Rpm at Max. Power
8000 rpm
- Torque
14 Nm
- Rpm at Torque
6500 rpm
- Compression Ratio
11.6
- Fuel system
Injection
- Starter
Electric
- Clutch Type
Centrifugal force
- Ignition
Transistor
- Transmission
Belt
- 2WD
no
- Transmission Type
Variomatic
- Chassis
- Frame
Steel
- Frame type
Central tube
- Suspension Front
- Front suspension
Telescopic fork
- Travel
100 mm
- Suspension Rear
- Suspension
Unit Swing
- Shock absorber
Dual Shock
- Travel
91 mm
- Brakes Front
- Type
Single disk
- Diameter
230 mm
- Actuation
Hydraulic
- Brakes Rear
- Type
Disc
- Diameter
230 mm
- Assistance Systems
- Advanced Rider Assistance Systems
ABS
- Dimensions and Weights
- Front tyre width
110 mm
- Front tyre height
70 %
- Front tyre diameter
13 inch
- Rear tyre width
130 mm
- Rear tyre height
70 %
- Rear tyre diameter
13 inch
- Length
1935 mm
- Width
740 mm
- Height
1200 mm
- Wheelbase
1340 mm
- Seat Height
770 mm
- Kerb Weight (with ABS)
135 kg
- Fuel Tank Capacity
7.1 l
- License compliancy
A2
- Range
295 km
- Euro Norm
Euro 5+
- Combined CO2 emissions
57 g/km
- Combined fuel consumption
2.4 l/100km
- Equipment
- Equipment
Keyless System, LED-Headlights, Start/Stop system, TFT display, USB-C socket, Integrated navigation system, Modern electronics, Charging & power, Comfort, Lighting
All information without guarantee. Typing errors and mistakes excepted.
